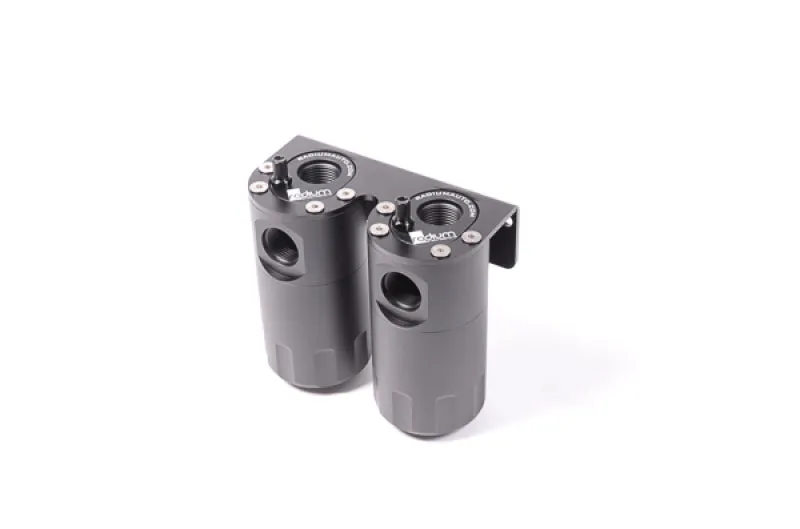

Radium Engineering Dual Universal Catch Can Kit

Part Number: 20-0005

NOTE: Catch cans are sold without fittings. Compatible 10AN ORB adapter fittings can be found .

BENEFITS
-Effectively raises the octane and increases engine performance from cleaner inlet air
-Prevents oil buildup in the intake, intercooler, throttle body, etc.
-Excessive oil collection can be an indicator of a damaged engine
-Lowers hydrocarbon emissions

FEATURES
-6061 Billet Aluminum O-Ring Sealed Oil Can
-Integrated Aluminum Baffle for Oil Condensing
-Reusable Stainless Steel Air/Oil Separating Media
-Main Ports: 7/8"-14 Female Threads (10AN ORB)
-Anodized Laser Cut Mounting Bracket
-O-Ring Sealed -4AN Drain Plug
-Stainless Steel Mounting Hardware
-Safe for Pressurized Applications
-Anodized Aluminum Oil Dipstick

DIMENSIONS
-Capacity: 8 fluid ounces
-Height (without fittings): 5 inches
-Outside Diameter: 2.45 inches

NOTES
1. The dual catch can system is essentially 2 single catch cans mounted to a one-piece universal mounting bracket.
2. A dual catch can kit can also be accomplished by purchasing 2 .
3. The lower half of the body simply unscrews for draining.
4. The integrated dipstick unscrews for a quick way to check oil level.
5. Some engines may require multiple catch cans depending on the PCV system design.
6. Catch cans are sold without fittings.
7. Catch cans are NOT designed to be used with aftermarket crankcase vacuum pumps.

OPTIONAL
Petcock Drain Kit
-4AN ORB Aluminum Barb Fitting
-Nylon ¼” Barb Mini Ball Valve
-PCV Compliant Rubber Hose
